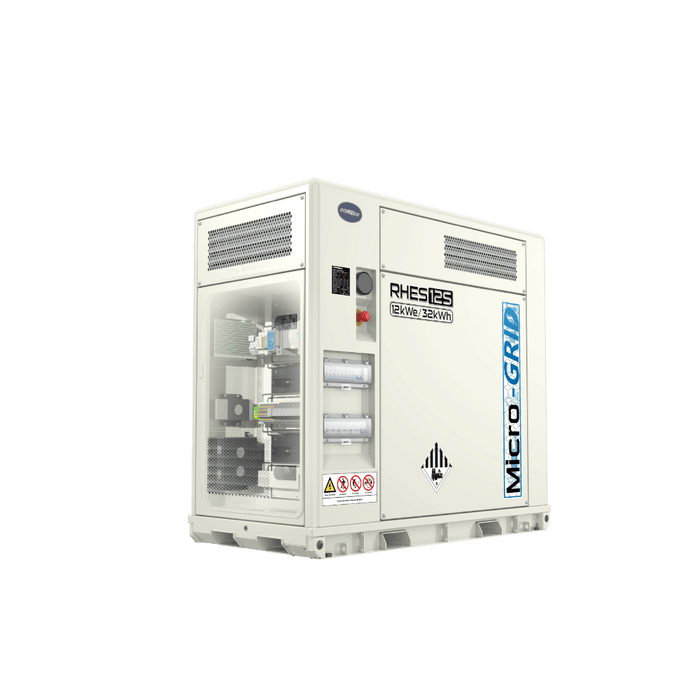

RHE12S3 12 kW, 30 kWh Battery 3 Phase

by Gogopower

1. 12 kWe continuous output, 30.72 kWh LiFePO4 battery, 1C max charge/discharge rate
2. Works with solar, mains grid and generators
3. Size : 1710 × 900 × 1700 mm, 1086 kg dry weight

$30,202.97

$30,202.97 - $30,202.97

$30,202.97

or up to 24 instalments of $1,258.45/month | ex GTS & Freight
With Procuret, you can choose the instalment plan that suits your business best. See more

Description

PowerLink RHE12S3 12 kW, 30.72 kWh 3Phase Micro-Grid Battery System

The RHE12S3 is a 3 phase residential Micro-Grid battery system built for homes and small businesses that need reliable, cost-cutting backup power. With a 30.72 kWh LiFePO4 battery (expandable to 51.2 kWh) and a built-in hybrid inverter, it stores solar and off-peak grid power, then delivers it back on demand — keeping your property running through outages while lowering your daily electricity costs.

Features

30.72 kWh LiFePO4 battery — expandable up to 51.2 kWh, safe long-life chemistry with no thermal runaway risk
12 kW continuous output (12.6 kW max), 3 phase, 220/230/240V AC
105% overload capability for continuous operation (SOC > 30%, ambient temp < 45°C)
Accepts up to 18 kWp of solar (PV) input and 18 kW grid/generator input
1C max charge/discharge rate, 80% default depth of discharge (adjustable via SOC)
IP54 rated, natural cooling — no fans, silent operation, -20°C to 50°C operating range
10.3" touchscreen HMI with Modbus TCP/IP, WAN/WiFi/SIM connectivity
EnerWEB IoT monitoring via app or web — remote status, alerts and reporting
UN38.3, IEC, CE and AS4777.2 certified — compliant for Australian grid connection

Technical Specifications

Battery System
Battery type			LiFePO4
Battery capacity			30.72 kWh (expandable to 51.2 kWh)
Rated voltage			51.2 V DC
Cooling system			Natural cooling
Max charge / discharge rate			1C / 1C
DOD (depth of discharge)			Default 80% (set via SOC)
DC/AC (Inverter) System
Rated power			12 kVA / 12 kW
Output voltage			220 / 230 / 240 V AC
Frequency			50 Hz
Phase			3
Power factor			1
Parallel / On-grid function			Parallel: No \| On-grid: Yes
Overload capability			105% continuous (SOC>30%, temp<45°C)
Output Ratings by Voltage
Item	220V	230V	240V
Max output power (kVA/kW)	12.6/12.6	12.6/12.6	12.6/12.6
Max current (A)	57	55	53
Continuous output power (kVA/kW)	12/12	12/12	12/12
Continuous current (A)	55	52	50
Grid / Generator Power Input
Rated power			12 kVA / 12 kW
Max power			18 kVA / 18 kW
Phase			1
PV (Solar) System
MPPT rated power			18 kWp
Rated voltage			160–800 V DC
Note: Solar panels are optional and sold separately.
Control System
HMI control panel			10.3" touchscreen
Communication protocol			Modbus TCP/IP
Communication interface			WAN / WiFi / SIM
IoT platform			EnerWEB (App / Web)
Mechanical & General
Dimensions (L×W×H)			1710 × 900 × 1700 mm
Dry weight			1086 kg
40' container loading			13 units
Noise level			50 dBA @ 7m
Protection level			IP54
Ambient temperature			-20°C to 50°C
Power connection (input)			DC terminals 18kW; AC copper 12kW
Power connection (output)			AC copper 12kW; AC socket 1P, 3×15A
Certification Standards
UN38.3, IEC 62619, IEC 62477, IEC/EN 60529, EN 61000-6-1/2/3/4, AS 4777.2, G99, CE Declaration of Conformity

Note: Discharge power decreases as battery SOC decreases. Battery capacity can be expanded up to 51.2 kWh. Data is subject to change without prior notice.

Why choose PowerLink RHE12S
The RHE12S is the accessible entry point into PowerLink's Micro-Grid range — full hybrid functionality across solar, grid and generator inputs, without paying for capacity a standard single-phase home doesn't need. With a 10.3" touchscreen, remote IoT monitoring, and a battery pack that can be expanded later to 51.2 kWh, it's a system you can size up as your needs grow.

PowerLink RHE12S Micro-Grid battery system

Application
Best suited to single-phase homes, rural properties and small businesses that want a lower-cost entry into whole-property backup power, with the option to expand storage as demand grows.

	Residential Homes Pair with rooftop solar to cut your daily electricity bill and keep the lights on through blackouts. The built-in Smart EMS automatically charges from solar first, then cheap off-peak grid power, so you always draw from the lowest-cost source without lifting a finger.
	Small Businesses & Shops For shopfronts, cafes and small workshops, even a short outage means lost sales and spoiled stock. The RHE12S keeps registers, refrigeration and lighting running without interruption.
	Rural & Off-Grid Sites Combine solar, battery and backup generator power for properties with no reliable grid access — the RHE12S manages all three inputs automatically, delivering clean, dependable electricity around the clock.
