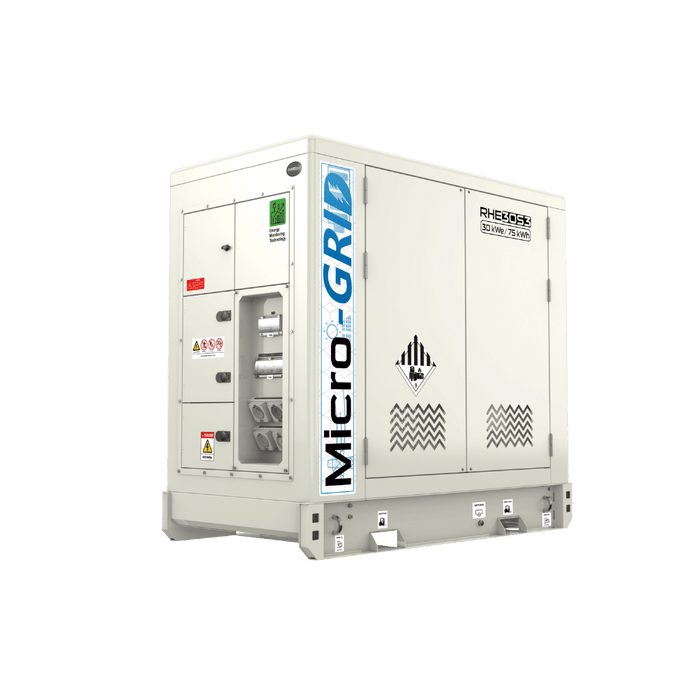

PowerLink RHE30S3, 30 kW, 75 kWh Three-Phase Micro-Grid Battery System

by Gogopower

1. 230 kWe continuous output, 75 kWh LiFePO4 battery, 1C max charge/discharge rate
2. Works with solar, mains grid and generators
3. Size : 2046 × 1080 × 1886 mm, 1605 kg dry weight

$49,759.00

$49,759.00 - $49,759.00

$49,759.00

or up to 24 instalments of $2,073.29/month | ex GTS & Freight
With Procuret, you can choose the instalment plan that suits your business best. See more

Quantity

Description

PowerLink RHE30S3 — 30 kW, 75 kWh Three-Phase Micro-Grid Battery System

The RHE30S3 is the largest system in PowerLink's residential Micro-Grid range, combining 30 kWe of continuous output with 75 kWh of LiFePO4 storage (expandable up to 124.8 kWh). Built for three-phase properties that need serious power security — larger rural sites, multi-building properties, or small businesses that can't afford downtime — it manages solar, grid and backup generator power automatically, delivering the longest backup runtime and highest headroom in the RHE lineup.

Features

75 kWh LiFePO4 battery — expandable up to 124.8 kWh, safe long-life chemistry with no thermal runaway risk
30 kW continuous output (36 kW max), three phase, 380/400/415V AC
Extended overload capability — 110% for 10 minutes, 120% for 1 minute (SOC > 30%, ambient temp < 45°C)
Dual MPPT — accepts up to 38 kWp of solar (19+19 kWp)
1C max charge/discharge rate, 80% default depth of discharge (adjustable via SOC)
IP54 rated, -20°C to 50°C operating range
10.3" touchscreen HMI with WAN/WiFi/SIM connectivity
EnerWEB cloud platform via app or web — remote status, alerts and reporting
UN38.3, IEC, CE and AS4777.2 certified — compliant for Australian grid connection

Technical Specifications

Battery System
Battery type			LiFePO4
Battery capacity			75 kWh (expandable to 124.8 kWh)
Rated voltage			499 V DC
Cooling system			Natural cooling^*
Max charge / discharge rate			1C / 1C
DOD (depth of discharge)			Default 80% (set via SOC)
DC/AC (Inverter) System
Rated power			30 kVA / 30 kW
Output voltage			380 / 400 / 415 V AC
Frequency			50 Hz
Phase			3 (three phase)
Power factor			1
Parallel / On-grid function			Parallel: No \| On-grid: Yes
Overload capability			110% for 10 min, 120% for 1 min (SOC>30%, temp<45°C)
Output Ratings by Voltage
Item	380V	400V	415V
Max output power (kVA/kW)	36/36	36/36	36/36
Max current (A)	55	52	50
Continuous output power (kVA/kW)	30/30	30/30	30/30
Continuous current (A)	46	43	42
Grid / Generator Power Input
Rated power			30 kVA / 30 kW
Phase			3
PV (Solar) System
MPPT rated power			19+19 kWp (dual MPPT, 38 kWp total)
Rated voltage			200–800 V DC
Note: Solar panels are optional and sold separately.
Control System
HMI control panel			10.3" touchscreen
Communication interface			WAN / WiFi / SIM
Cloud services			EnerWEB (App / Web)
Mechanical & General
Dimensions (L×W×H)			2046 × 1080 × 1886 mm
Dry weight			1605 kg
40' container loading			11 units
Noise level			50 dBA @ 7m
Protection level			IP54
Ambient temperature			-20°C to 50°C
Power connection (input)			DC terminals 19+19kW; AC copper 30kW
Power connection (output)			AC copper 30kW; AC socket 1P & 3P
Certification Standards
UN38.3, IEC 62619, IEC 62477, IEC/EN 60529, EN 61000-6-1/2/3/4, AS 4777.2, G99, CE Declaration of Conformity

* The manufacturer's spec sheet lists "Natural cooling" in this table but separately notes the unit is equipped with air-conditioning for cooling. Please confirm with PowerLink before publishing.

Note: Discharge power decreases as battery SOC decreases. Battery capacity can be expanded up to 124.8 kWh. Data is subject to change without prior notice.

Why choose PowerLink RHE30S3
RHE30S3 is for properties where power security genuinely matters — larger rural sites, multi-building properties or small businesses that can't afford downtime. The extra capacity means longer runtime during extended outages, dual MPPT solar inputs for larger arrays, and more headroom for solar self-consumption than any other model in the RHE range.

PowerLink RHE30S3 Micro-Grid battery system

Application
Best fit for larger rural and off-grid properties, small businesses with significant daily loads, and any site wanting maximum resilience against blackouts and unstable grid supply.

	Larger Homes & Estates Pair with a large rooftop or ground-mount solar array to cover heavy daily loads and long backup windows. The built-in Smart EMS automatically charges from solar first, then cheap off-peak grid power, so you always draw from the lowest-cost source.
	Small Businesses with Heavy Loads For workshops, small industrial sites and multi-unit commercial buildings, the RHE30S3 keeps significant equipment, refrigeration and lighting loads running through outages without interruption.
	Large Rural & Off-Grid Sites Combine solar, battery and backup generator power for larger off-grid properties — the RHE30S3 manages all three inputs automatically, delivering clean, dependable electricity to bores, irrigation, workshops and heavy motors around the clock.
