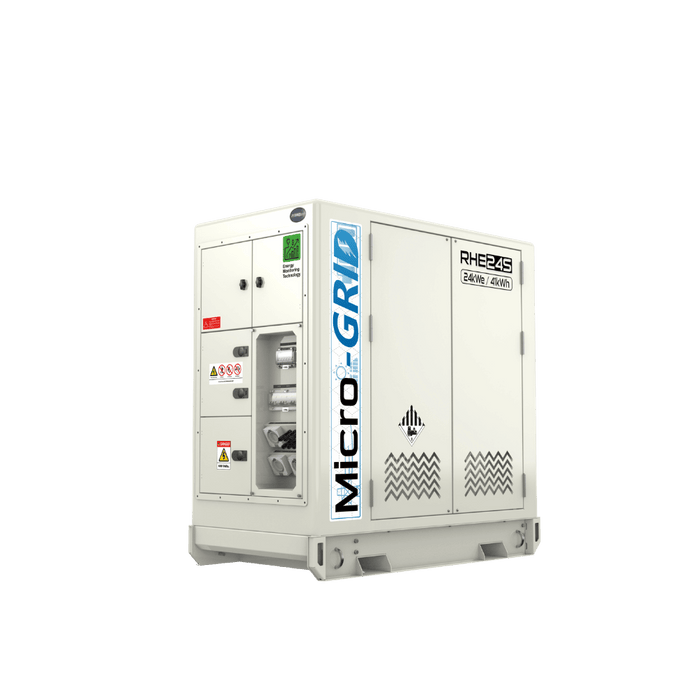

PowerLink RHE24S 24 kW, 40.96 kWh 1 Phase Micro-Grid Battery System

by Gogopower

1. 24 kWe continuous output, 41 kWh LiFePO4 battery, 1C max charge/discharge rate
2. Works with solar, mains grid and generators
3. Size : 1710 × 926 × 1724 mm, 1215 kg dry weight

$40,433.28

$40,433.28 - $40,433.28

$40,433.28

or up to 24 instalments of $1,684.72/month | ex GTS & Freight
With Procuret, you can choose the instalment plan that suits your business best. See more

Description

PowerLink RHE24S 24 kW, 40.96 kWh Single Phase Micro-Grid Battery System

The RHE24S3 is a 1 phase residential Micro-Grid battery system built for larger homes and small businesses with heavier daily loads. With a 40.96 kWh LiFePO4 battery (expandable to 51.2 kWh) and dual-MPPT hybrid inverter, it stores solar and off-peak grid power, then delivers it back on demand — giving you more output and longer backup runtime than the entry-level RHE12S, while keeping your property running through outages and cutting your daily electricity costs.

Features

40.96 kWh LiFePO4 battery — expandable up to 51.2 kWh, safe long-life chemistry with no thermal runaway risk
24 kW continuous output (25.2 kW max), 3 phase, 220/230/240V AC
105% overload capability for continuous operation (SOC > 30%, ambient temp < 45°C)
Dual MPPT: accepts up to 36 kWp of solar (18+18 kWp) and 36 kW grid/generator input
1C max charge/discharge rate, 80% default depth of discharge (adjustable via SOC)
IP54 rated, natural cooling — no fans, silent operation, -20°C to 50°C operating range
10.3" touchscreen HMI with Modbus TCP/IP, WAN/WiFi/SIM connectivity
EnerWEB IoT monitoring via app or web — remote status, alerts and reporting
UN38.3, IEC, CE and AS4777.2 certified — compliant for Australian grid connection

Technical Specifications

Battery System
Battery type			LiFePO4
Battery capacity			40.96 kWh (expandable to 51.2 kWh)
Rated voltage			51.2 V DC
Cooling system			Natural cooling
Max charge / discharge rate			1C / 1C
DOD (depth of discharge)			Default 80% (set via SOC)
DC/AC (Inverter) System
Rated power			24 kVA / 24 kW
Output voltage			220 / 230 / 240 V AC
Frequency			50 Hz
Phase			1
Power factor			1
Parallel / On-grid function			Parallel: No \| On-grid: Yes
Overload capability			105% continuous (SOC>30%, temp<45°C)
Output Ratings by Voltage
Item	220V	230V	240V
Max output power (kVA/kW)	25.2/25.2	25.2/25.2	25.2/25.2
Max current (A)	115	110	105
Continuous output power (kVA/kW)	24/24	24/24	24/24
Continuous current (A)	109	104	100
Grid / Generator Power Input
Rated power			24 kVA / 24 kW
Max power			36 kVA / 36 kW
Phase			1
PV (Solar) System
MPPT rated power			18+18 kWp (dual MPPT, 36 kWp total)
Rated voltage			160–800 V DC
Note: Solar panels are optional and sold separately.
Control System
HMI control panel			10.3" touchscreen
Communication protocol			Modbus TCP/IP
Communication interface			WAN / WiFi / SIM
IoT platform			EnerWEB (App / Web)
Mechanical & General
Dimensions (L×W×H)			1710 × 926 × 1724 mm
Dry weight			1215 kg
40' container loading			13 units
Noise level			50 dBA @ 7m
Protection level			IP54
Ambient temperature			-20°C to 50°C
Power connection (input)			DC terminals 18+18kW; AC copper 24kW
Power connection (output)			AC copper 24kW; AC socket 1P, 3×15A
Certification Standards
UN38.3, IEC 62619, IEC 62477, IEC/EN 60529, EN 61000-6-1/2/3/4, AS 4777.2, G99, CE Declaration of Conformity

Note: Discharge power decreases as battery SOC decreases. Battery capacity can be expanded up to 51.2 kWh. Data is subject to change without prior notice.

Why choose PowerLink RHE24S
RHE24S doubles the output and battery capacity of the RHE12S without stepping up to three-phase infrastructure the practical choice when 12 kWe would leave you short during high-demand periods. Dual MPPT inputs also mean you can split a larger solar array across two strings for better yield.

PowerLink RHE24S Micro-Grid battery system

Application
Well suited to larger homes, small shops, and properties running higher continuous loads — pumps, workshops, multiple air conditioning units — that still operate on single-phase power.

	Residential Homes Pair with a larger rooftop solar array to cut your daily electricity bill and keep the lights on through blackouts. The built-in Smart EMS automatically charges from solar first, then cheap off-peak grid power, so you always draw from the lowest-cost source without lifting a finger.
	Small Businesses & Shops For shopfronts, cafes and small workshops with heavier equipment loads, even a short outage means lost sales and spoiled stock. The RHE24S keeps registers, refrigeration and lighting running without interruption, with enough headroom for larger appliance loads.
	Rural & Off-Grid Sites Combine a larger solar array, battery and backup generator power for properties with no reliable grid access — the RHE24S manages all three inputs automatically, delivering clean, dependable electricity around the clock for bores, pumps and workshop machinery.
